what causes poor contact and overheating in electrical terminals
Core Principle: Excessive Contact Resistance

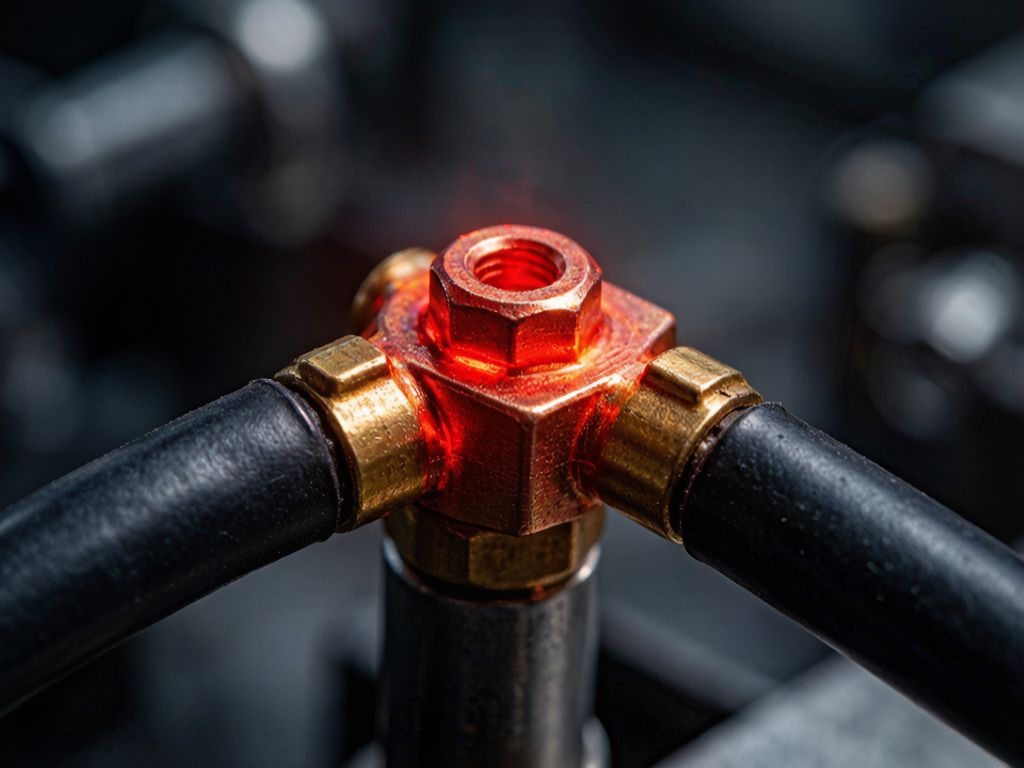

Terminal overheating is fundamentally caused by abnormally high contact resistance. According to Joule’s law, high resistance generates massive heat when current passes through. Once the terminal contact surface fails to fit tightly, resistance rises sharply, forming a vicious cycle: heat accumulation → increased resistance → more severe overheating, and finally terminal burnout or arcing.
Poor Product Design & Inferior Materials
Unqualified terminal design and raw materials are inherent causes of overheating:
- Mismatched specifications: Using undersized terminals for high-current loads leads to insufficient contact area and excessive current density.

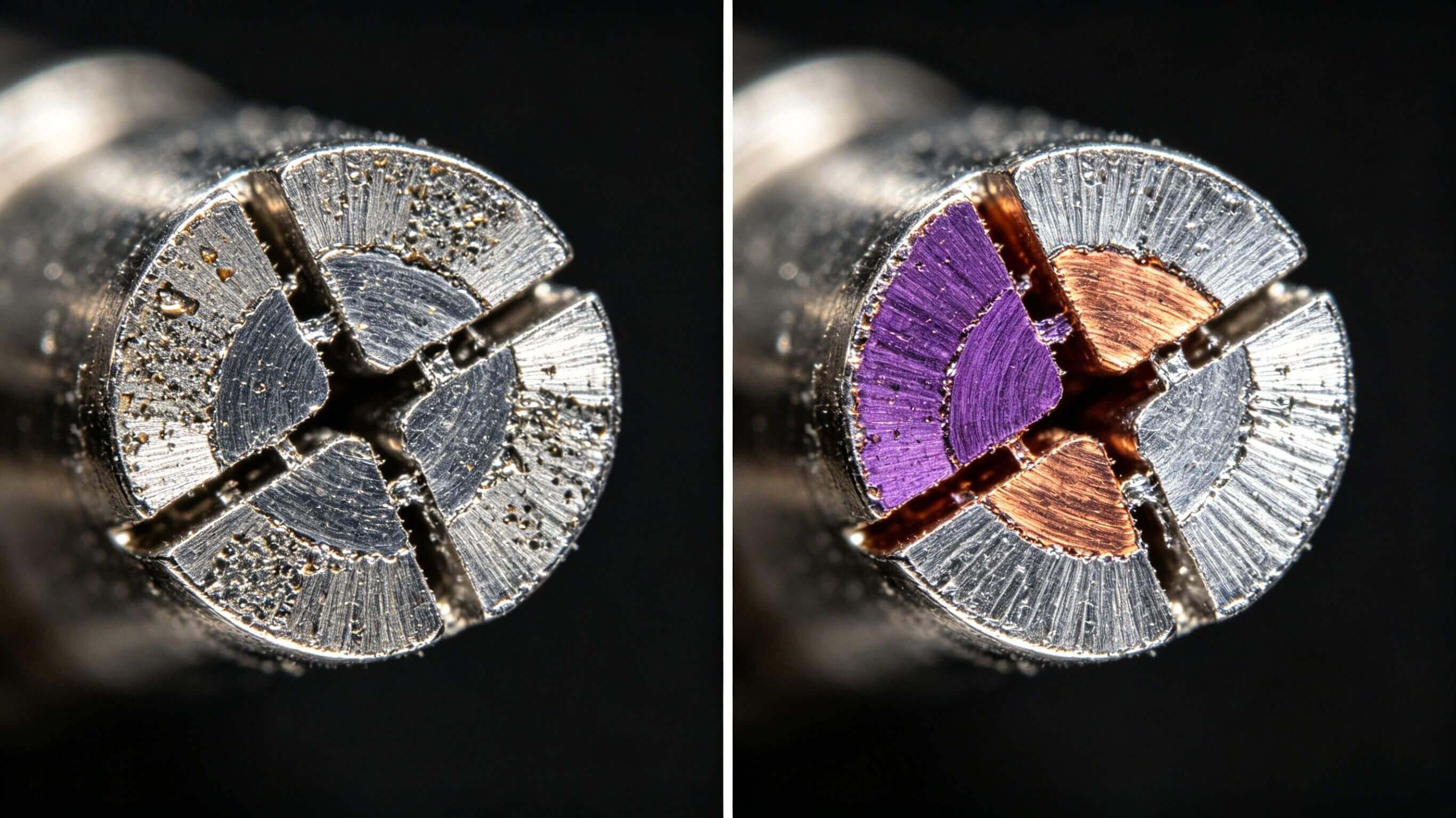

- Low-quality conductive materials: Impure copper or unqualified electroplating causes poor conductivity and easy oxidation.
- Unreasonable structure: Point contact instead of surface contact creates local hot spots and uneven current transmission.
Non-Standard Installation Problems
Improper installation is the leading cause of on-site poor contact faults:
- Incorrect bolt torque: Loose torque causes gaps between contacts; excessive torque crushes wire strands and damages terminals.
- Irregular wire processing: Untidy stranded wires, improper stripping length, and multi-wire crimping reduce effective contact area.
- Dirty contact surface: Dust, oil and oxide layers during installation isolate metal contacts and increase resistance.
Environmental & Operational Aging Factors
Long-term operation will gradually deteriorate terminal contact performance:
- Vibration & thermal cycling: Equipment vibration and repeated temperature expansion and contraction loosen terminal bolts over time.
- Corrosion & oxidation: Humidity, salt spray and chemical corrosion form high-resistance oxide layers on contact surfaces.
- Long-term overload: Sustained over-current operation exceeds terminal heat dissipation limit and accelerates aging.
Effective Prevention Solutions
To avoid terminal poor contact and overheating, enterprises can adopt targeted measures:
- Select high-precision, high-conductivity electrical terminals with complete current rating specifications.

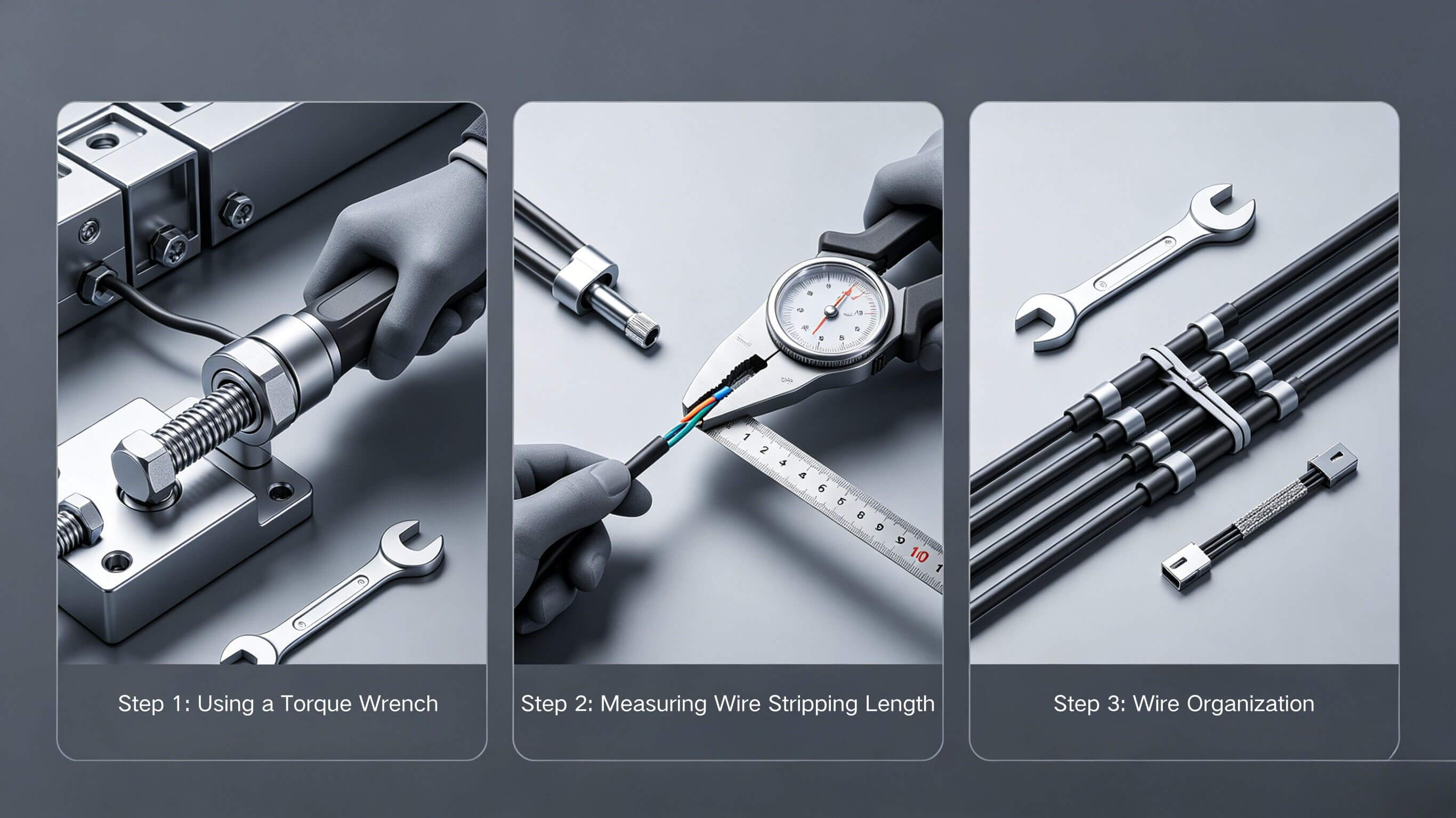

- Standardize installation process and strictly follow standard torque requirements.

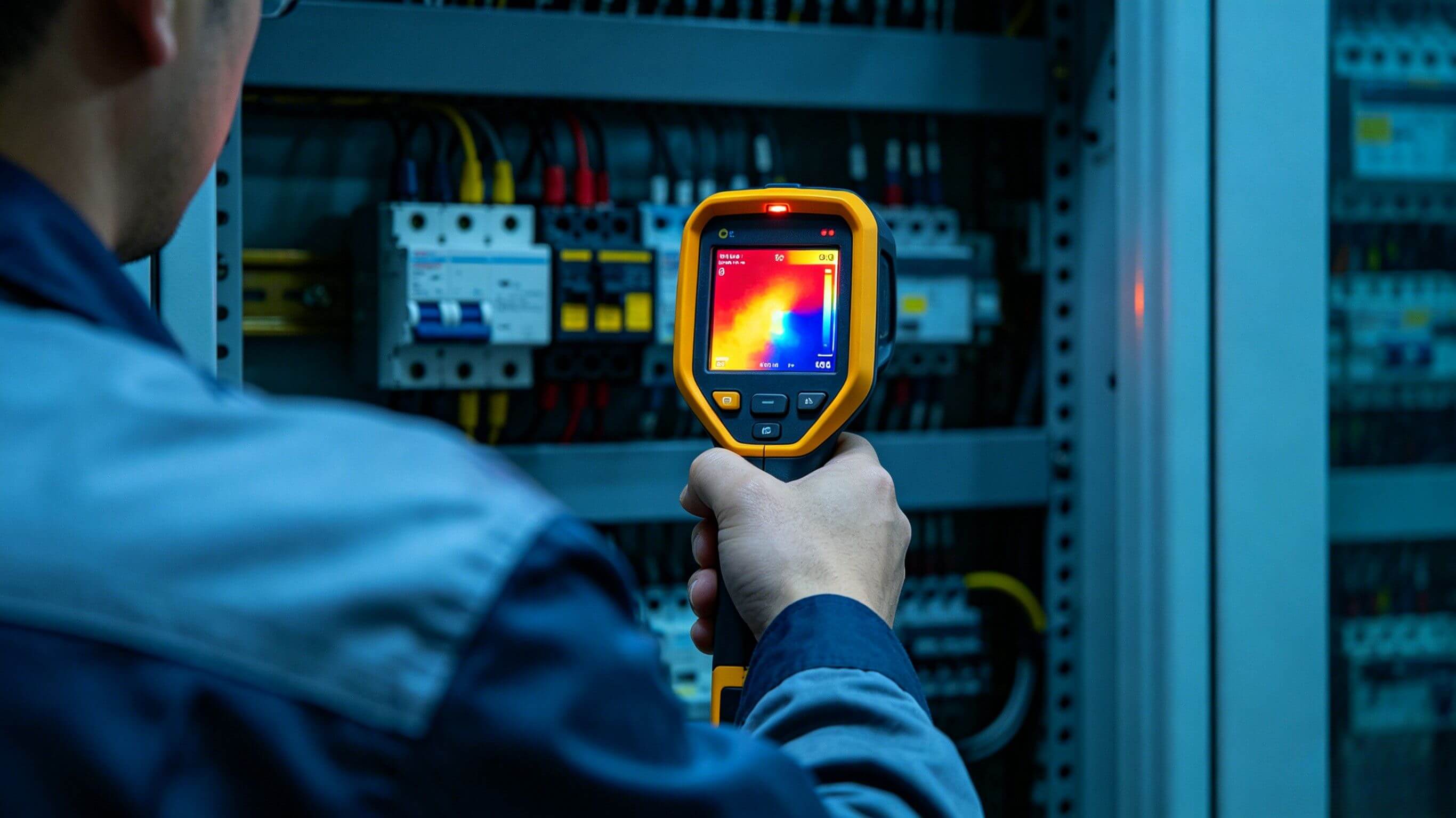

- Regularly inspect, clean contact surfaces and re-torque loose terminals.
- Avoid long-term circuit overload and prevent vibration and corrosive environment erosion.
Conclusion
Electrical terminal overheating and poor contact are mainly caused by material defects, non-standard installation and operational aging. Adopting high-quality terminals, standardized construction and regular maintenance can greatly improve electrical system safety and stability, avoiding unnecessary downtime and fire hazards.
